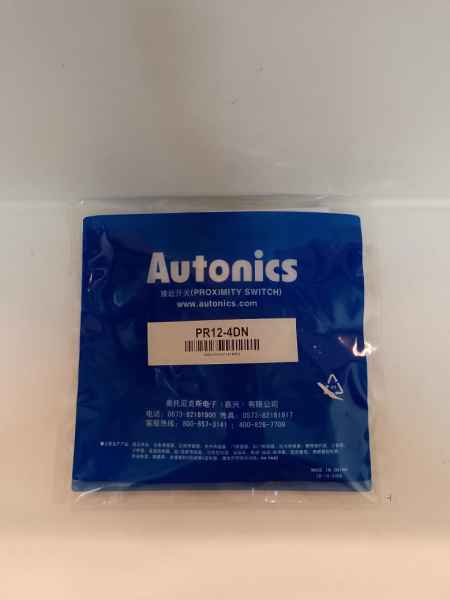

AUTONICS PR12-4DN

(0 Ulasan)

Rp. 167.000

Spesifikasi Produk

SKU	AB-PR12-4DN
Tipe	PROXIMITY SWITCH AUTONICS PR12-4DN
Merk	Autonics
Berat	150 Gram

Deskripsi Produk

Spesifikasi PROXIMITY SWITCH AUTONICS PR12-4DN:
General
Brand: Autonics
Model: PR12-4DN
Type: Inductive Proximity Sensor (Cylindrical)
Detection
Sensing Diameter: M12 (Ø12 mm)
Sensing Distance: 4 mm
Installation: Non-Flush (Unshielded)
Standard Target: 12 × 12 × 1 mm (Iron)
Electrical
Supply Voltage: 10–30 VDC (rated 12–24VDC)
Current Consumption: Max. 10 mA
Output Type: NPN NO (Normally Open), 3-wire
Load Current: Max. 200 mA
Residual Voltage: Max. 1.5 V
Performance
Response Frequency: 500 Hz
Hysteresis: Max. 10% sensing distance
Protection
Surge protection
Reverse polarity protection
Overcurrent / short-circuit protection
Protection Class: IP67
Mechanical
Connection: 2 meter cable (standard)
Body Material: Nickel plated brass
Sensing Face: PBT
Weight: ±0.072 kg (72 gram) packaged ±0.084 kg
Operating Temperature
-25°C to +70°C

Daftar tipe lain Autonics PR12 Series:
PR12-2DN — NPN NO, 2 mm, flush
PR12-2DN2 — NPN NC, 2 mm, flush
PR12-2DP — PNP NO, 2 mm, flush
PR12-2DP2 — PNP NC, 2 mm, flush
PR12-4DN — NPN NO, 4 mm, non-flush
PR12-4DN2 — NPN NC, 4 mm, non-flush
PR12-4DP — PNP NO, 4 mm, non-flush
PR12-4DP2 — PNP NC, 4 mm, non-flush
Versi DC 2-wire:
PR12-2DC — NO, 2 mm
PR12-2DO — NC, 2 mm
PR12-4DC — NO, 4 mm
PR12-4DO — NC, 4 mm
Versi AC 2-wire:
PR12-2AC — NO, 2 mm
PR12-2AO — NC, 2 mm
PR12-4AC — NO, 4 mm
PR12-4AO — NC, 4 mm
