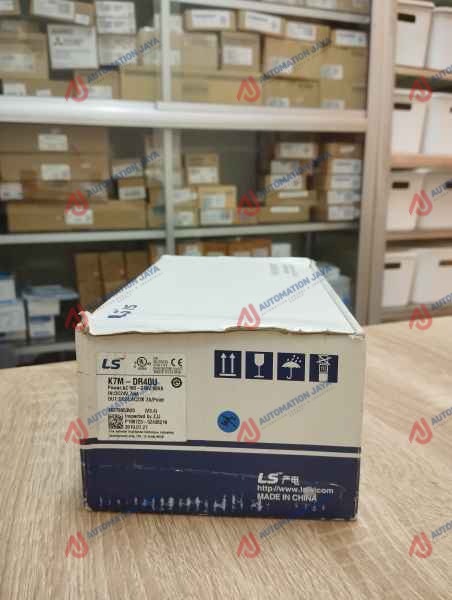

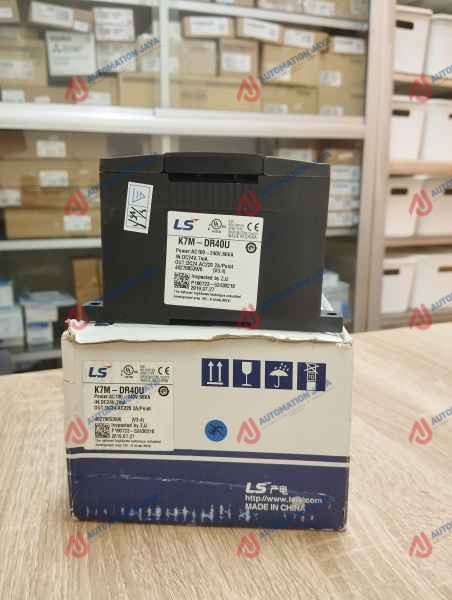

LS Electric K7M-DR40U
PLC compact seri MASTER-K120S, tipe standard dengan total 40 titik I/O.
Spesifikasi utama
Parameter Spesifikasi
Model K7M-DR40U
Jenis CPU/main unit PLC compact
Total I/O 40 titik
Digital input 24 titik
Digital output 16 titik relay
Tegangan power AC 100–240 V, 50/60 Hz
Konsumsi daya maksimum 66 VA
Tegangan input 24 VDC
Arus input 7 mA; terminal P0–P3 sekitar 9 mA
Rentang input 20,4–28,8 VDC
Kondisi input ON Minimum 19 VDC/5,7 mA
Kondisi input OFF Maksimum 6 VDC/1,8 mA
Filter input 0–1.000 ms, dapat diprogram
Jenis output Relay
Kapasitas output 2 A/titik pada 24 VDC atau 220 VAC
Kapasitas per common Maksimum 5 A
Tegangan output maksimum 250 VAC atau 110 VDC
Beban minimum 5 VDC, 1 mA
Respons output ON maks. 10 ms; OFF maks. 12 ms
Kapasitas program 10.000 step
Kecepatan instruksi dasar 0,1 µs/step
Bahasa program Ladder Diagram dan Instruction List
Data register D0000–D4999
Counter C000–C255
Timer 256 titik
Komunikasi Loader RS-232C, RS-232C Channel 0, RS-485 Channel 1
Protokol LS dedicated, Modbus RTU/ASCII dan user-defined
High-speed counter Maksimum 100 kpps
PID Maksimum 8 loop
Ekspansi Maksimum 3 modul; hingga sekitar 120 I/O
Software KGLWIN

Daftar lengkap main unit standard
Output relay — kode DR
Model AC Model power 24 VDC Input Output
K7M-DR20U K7M-DR20U/DC 12 input 8 relay
K7M-DR30U K7M-DR30U/DC 18 input 12 relay
K7M-DR40U K7M-DR40U/DC 24 input 16 relay
K7M-DR60U K7M-DR60U/DC 36 input 24 relay
Output kombinasi relay + transistor — kode DRT
Model AC Model power 24 VDC Input Output
K7M-DRT20U K7M-DRT20U/DC 12 4 relay + 4 transistor
K7M-DRT30U K7M-DRT30U/DC 18 8 relay + 4 transistor
K7M-DRT40U K7M-DRT40U/DC 24 12 relay + 4 transistor
K7M-DRT60U K7M-DRT60U/DC 36 20 relay + 4 transistor
Empat transistor pada tipe DRT dapat digunakan untuk positioning dua sumbu hingga 100 kpps.
Seluruh output transistor — kode DT
Model AC Model power 24 VDC Input Output transistor
K7M-DT20U K7M-DT20U/DC 12 8
K7M-DT30U K7M-DT30U/DC 18 12
K7M-DT40U K7M-DT40U/DC 24 16
K7M-DT60U K7M-DT60U/DC 36 24
Main unit Economic Type
Model Input Output
K7M-DR10UE 6 4 relay
K7M-DR14UE 8 6 relay
K7M-DR20UE 12 8 relay
K7M-DR30UE 18 12 relay
Varian power 24 VDC menggunakan tambahan kode /DC.
Daftar modul ekspansi
Digital I/O
Model Fungsi
G7E-DC08A 8 digital input 24 VDC
G7E-DR08A 4 input + 4 relay output
G7E-DR10A 6 input + 4 relay output
G7E-DR20A 12 input + 8 relay output
G7E-TR10A 10 transistor output
G7E-RY08A 8 relay output
G7E-RY16A 16 relay output
Analog dan suhu
Model Fungsi
G7F-AD2A 4-channel analog input
G7F-AD2B 4-channel analog input
G7F-DA2V 4-channel analog voltage output
G7F-DA2I 4-channel analog current output
G7F-ADHA 2 analog input + 1 analog output
G7F-ADHB 2 analog input + 2 analog output
G7F-ADHC 1 analog input + 1 analog output
G7F-RD2A 4-channel RTD, Pt100/JPt100
G7F-AT2A 4-channel analog timer
Komunikasi dan opsi
Model Fungsi
G7L-CUEB RS-232C
G7L-CUEC RS-422/RS-485
G7L-DBEA DeviceNet Slave
G7L-PBEA Profibus-DP Slave
G7L-FUEA Fnet interface
G7L-RUEA Rnet interface
G7E-RTCA Real-time clock
G7M-M256B Modul memori/program backup
